Features
Wide flow range
As the rotors’ rotation torque is small, pressure loss is minimum and it can a wide flow range.
Less vibration and noise
2 sets of rotors at 45°alignment reduce the pulsation of flow achieving less vibration and noise of piping system.

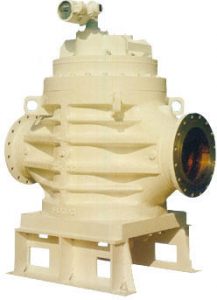

Small installation footprint
Installation footprint is small because of Its vertical structure.
Specifications
| Applicable Fluid | Various oils |
| Accuracy | +0.5% or + 0.2% |
| Connection Size | 150mm – 350mm |
| Flow range | 8 – 1,500m2G/h |
| Fluid Temperature | -5 – 150 °C
(Rotor material for AC : MAX 50 °C) (Rotor material for FC200 : MAX 150 °C) |
| Pressure | Max 2.5MPa |
| Viscosity | Max 150 MPa-s |
| Material | Body : SCPH2
Rotors: FC200, AC |
