Features

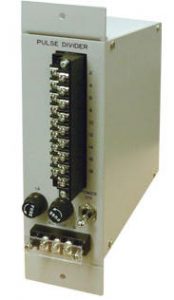

This pulse divider receives the input pulse signal from the transmitter of the flowmeter and can transmit or generate the output of maximum five systems. After the wave shape of the pulse dispatched from the flowmeter is compensated in the amplifier, the pulse is divided into 1/1~1/10000 with the following frequency division circuit and is set in a necessary unit. The divided pulse is passed through the pulse width shaping circuit and transmitted (generated) from the external terminal as a voltage pulse, an open collector or a contact pulse.
