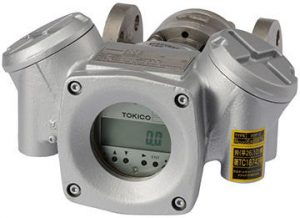

The pulse sensor CCG flowmeter is a positive displacement flowmeter to directly measure the flow with two oval shaped gear rotors. It is best suitable to measure very small flow rate of various fluids such as catalyst, additive, or perfume. Because of stainless steel as standard material, it has high corrosion resistance against special fluids.
Standard Specification
| Applicable Fluid | Water, Chemical Liquid, Food, Pharmaceutical Substance, Petroleum, etc. |
|---|---|
| Accuracy | ±0.5%RD |
| Flow Range | 2~300L/h |
| Fluid Viscosity | 5mPa･s or below |
| Fluid Temperature | -10~80℃ |
| Max.Working Pressure | 1.96MPa |
| Connection Size | 15mm |
| Material | Body : SCS14 Rotor : SUS316 Rotor Shaft : SUS316 Hard Chrome Coating Bearing : Carbon |
