Wide measurement range and high accuracy
Features

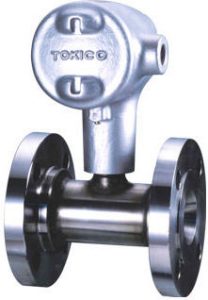

Our turbine meter is much smaller and lighter
Wide measurement range and high accuracy Compared with other types of flowmeters, Our turbine meter is much smaller and lighter and can measure accurately in a very wide flow range.
The high precision integrating accuracy of ±0.2% can be always maintained for dealings and ±0.5% for general purpose with excellent accuracy repeatability.
Extremely wide range of application
- Applicable fluid
- Temperature
- Pressure
Unique rotor floating structure
The rotor rotates in a floating state by a unique fluid dynamic balancing structure, which facilitates to provide very high accuracy in a wide flow range and superb durability.
Light and compact structure for easy maintenance
The light and compact structure facilitates easy handling and maintenance.
Standard Specifications(MEASURING UNIT)
| Applicable Fluid | Water, petroleum, Chemical Liquids, LPG, LNG etc. | |
| Accuracy | +0.2% or +0.5% | |
| Flow Rate Range | 0.36 -3,500m3/h | |
| Fluid Temperature | -250- 500 ℃ | |
| Max. Working press. | Flange Rating | |
| Fluid Viscosity | 5mm2/s {5cSt} or less | |
| Connection Size | 20mm (3/4inch) – 350mm (14inch) | |
| Flange Rating | JIS 10K, 20K FF or RF ANSI.JPI 150, 300 RF | |
| Material | Housing | SUS304 (Under capacity model 54 type)
SUS304 + S25C (Flange) (More than capacity model 54 type) |
| Blade | SUS631 (Under capacity model 57 type)
SUS430 (More than capacity model 51 type) |
|
| Bearing | Super Hard Alloy | |
| Others | SUS304 | |
| Piping Installation | Horizontal Piping | |
| Paint color | Silver (only Indicating unit) | |
